Godrej Vaccine Ice Lined Refrigerators with SureChill Technology

Godrej Appliances presents ::

  • GVR 25 LITE– Ice Lined Refrigerator

  • GVR 51 LITE – Ice Lined Refrigerator

  • GVR 75 LITE – Ice Lined Refrigerator

  • GVR 51 Lite AC – Ice Lined Refrigerator

  • GVR 75 Lite AC – Ice Lined Refrigerator

  • GVR 99 Lite AC – Ice Lined Refrigerator

  • GVR 100DC – Solar Direct Drive Ice lined Refrigerator

  • GVR 100AC – Ice lined Refrigerator

  • GVR 225 AC – Ice Lined Refrigerator

  • GVR 50DC – Solar Direct Drive Ice lined Refrigerator

  • GVR 50AC – Ice lined Refrigerator

Request Quote | Best Offer


Key Features :


Operating Temperature Range : 2° C to 8° C

Lighter and slimmer

Digital temperature display and logger records temperature every minute

with 60 days of temperature history

Sure Chill Technology ensure constant 4°C Temperature

Ambient temperature rated +10°C to +43°C

Built-in intelligent temperature control and energy management system

Environment friendly: CFC, HFC and HCFC free




GVR 51 Lite AC – Ice Lined Refrigerator


Key features of Godrej-Sure Chill refrigerator:

✓ Hold over time of 3+ days – The time during which all points in the cabinet remain between +2 oC to

+8 oC for more than 3 days after the power supply has been cut off.

✓ There is no risk of freezing – Sure Chill technology

✓ Can operate in rough ambient temperature: +5 oC to +43oC

✓ Green : Environmental friendly refrigerator

✓ 24 x 7 Temperature Display and Recorder

✓ 2 year warranty on Refrigerator

Product Specifications :

1.1. General

Vaccine Refrigerator powered by AC Mains: Compression-cycle

1.2. Physical characteristics

1.2.1. Product dimensions: 151cm H x 73.5cm L x 62cm W

1.2.2. Weight: 85 kg

1.2.3. Gross Volume: 69L

1.2.4. Vaccine storage capacity: 50.5L

1.2.5. Refrigerant: R600A– CFC free gas: negligible ozone depleting potential and

very low global warming potential

1.3. Performance

1.3.1. Operating temperature range: +5oC to +43oC

1.3.2. Power Requirement: 220-240V, 50-60 Hz

1.3.3. No risk of freezing

1.3.4. Holdover time: 3+days

1.3.5. Temperature control:

• Refrigerator Compartment: - entire chamber remains within acceptable temperature range +2oC to +8C

• Thermostat: The patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the storage compartment and is effective throughout the ambient temperature range +5oC to +43oC.

1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel

1.4. Parts and accessories:

1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock

1.4.2. Display Thermometer: externally readable digital display thermometer, mounted on Top

1.4.3. Stabilizer: Operating range: 110-260V

1.4.4. Power lead: lead of length 1.5 – 2 m is provided


Request Quote | Best Offer


GVR 75 Lite AC – Ice Lined Refrigerator



Key features of Godrej-Sure Chill refrigerator: ✓ Hold over time of 3+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for more than 3 days after the power supply has been cut off. ✓ There is no risk of freezing – Sure Chill technology ✓ Can operate in rough ambient temperature: +5 oC to +43oC ✓ Green : Environmental friendly refrigerator ✓ 24 x 7 Temperature Display and Recorder ✓ 2 year warranty on Refrigerator

Product specification 1.1. General Vaccine Refrigerator powered by AC Mains: Compression-cycle 1.2. Physical characteristics 1.2.1. Product dimensions: 151cm H x 73.5cm L x 62cm W 1.2.2. Weight: 85 kg 1.2.3. Gross Volume: 99.5L 1.2.4. Vaccine storage capacity: 72.5L 1.2.5. Refrigerant: R600A– CFC free gas: negligible ozone depleting potential and

very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Power Requirement: 220-240V, 50-60 Hz 1.3.3. No risk of freezing 1.3.4. Holdover time: 3+days 1.3.5. Temperature control: • Refrigerator Compartment: - entire chamber remains within acceptable temperature range +2oC to +8C • Thermostat: The patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer, mounted on Top 1.4.3. Stabilizer: Operating range: 110-260V 1.4.4. Power lead: lead of length 1.5 – 2 m is provided


GVR 99 Lite AC – Ice Lined Refrigerator





Key features of Godrej-Sure Chill refrigerator: ✓ Hold over time of 3+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for more than 3 days after the power supply has been cut off. ✓ There is no risk of freezing – Sure Chill technology ✓ Can operate in rough ambient temperature: +5 oC to +43oC ✓ Green : Environmental friendly refrigerator ✓ 24 x 7 Temperature Display and Recorder ✓ 2 year warranty on Refrigerator


Product specification 1.1. General Vaccine Refrigerator powered by AC Mains: Compression-cycle 1.2. Physical characteristics 1.2.1. Product dimensions: 170cm H x 73.5cm L x 62cm W 1.2.2. Weight: 95 kg 1.2.3. Gross Volume: 124L 1.2.4. Vaccine storage capacity: 98.5L 1.2.5. Refrigerant: R600A– CFC free gas: negligible ozone depleting potential and

very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Power Requirement: 220-240V, 50-60 Hz 1.3.3. No risk of freezing 1.3.4. Holdover time: 2+days 1.3.5. Temperature control: • Refrigerator Compartment: - entire chamber remains within acceptable temperature range +2oC to +8C • Thermostat: The patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer, mounted on Top 1.4.3. Stabilizer: Operating range: 110-260V 1.4.4. Power lead: lead of length 1.5 – 2 m is provided


GVR 100DC – Solar Direct Drive Ice lined Refrigerator



Key features of Godrej refrigerator: ✓ Hold over time of 10+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform

Product specification 1.1. General Solar Direct Drive Ice-lined refrigerator (DC current): compression-cycle 1.2. Physical characteristics 1.2.1. Overall dimensions: 182cm H x 75cm L x 79.5cm W 1.2.2. Weight: 125 kg (Approx.) 1.2.3. Gross volume: 121 L 1.2.4. Vaccine storage capacity volume: 99L 1.2.5. Refrigerant : R600A – CFC free gas: negligible ozone depleting potential and Key features of Godrej refrigerator: ✓ Hold over time of 10+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Power Requirement: 24 VDC, 500W Solar Power 1.3.3. Areas not suitable for vaccine storage: None. No risk of freezing 1.3.4. Holdover time: 10 days 1.3.5. Temperature control: • Refrigerator Compartment:- entire vaccine load remains within acceptable temperature range +2oC to +8C • Thermostat: the patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the vaccine storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer , mounted on door 1.4.3. Surge Protector to bypass electricity surges.

1.4.4. Plug & Play Solar Connectors with Wind Resistant Solar Mounting Kit which

can withstand 200KN Wind Force.

1.4.5. Base stand: A Galvanised mild steel stand is also provided, can withstand 400 kg

load


Request Quote | Best Offer


GVR 100AC – Ice lined Refrigerator





Key features of Godrej refrigerator: ✓ Hold over time of 13 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform

Product specification 1.1. General Ice-lined refrigerator powered by mains electricity (alternating current): compression-cycle 1.2. Physical characteristics 1.2.1. Overall dimensions: 182cm H x 75cm L x 79.5cm W 1.2.2. Weight: 125 kg (Approx.) 1.2.3. Gross volume: 121 L 1.2.4. Vaccine storage capacity volume: 99L Key features of Godrej refrigerator: ✓ Hold over time of 13 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

1.2.5. Refrigerant : R600A – CFC free gas: negligible ozone depleting potential and very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Voltage and frequency: 220-240 Volt 50/60 Hz 1.3.3. Areas not suitable for vaccine storage: None. No risk of freezing 1.3.4. Holdover time: 8 days 1.3.5. Temperature control: • Refrigerator Compartment:- entire vaccine load remains within acceptable temperature range +2oC to +8C • Thermostat: the patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the vaccine storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer , mounted on door 1.4.3. Stabilizer: Operating range: 110-260V 1.4.4. Power lead: lead of length 1.5 – 2 m is provided


GVR 225 AC – Ice Lined Refrigerator



Key features of Godrej-Sure Chill refrigerator: ✓ Hold over time of 3+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for more than 3 days after the power supply has been cut off. ✓ There is no risk of freezing – Sure Chill technology ✓ Can operate in rough ambient temperature: +5 oC to +43oC ✓ Green : Environmental friendly refrigerator ✓ 24 x 7 Temperature Display and Recorder ✓ 2 year warranty on Refrigerator and 5 year warranty on Compressor

Product specification 1.1. General Vaccine Refrigerator powered by AC Mains: Compression-cycle 1.2. Physical characteristics 1.2.1. Overall dimensions: 182cm H x 79.5cm L x 75cm W 1.2.2. Weight: 125 kg 1.2.3. Gross Volume: 276L 1.2.4. Vaccine storage capacity: 225L 1.2.5. Refrigerant: R600A– CFC free gas: negligible ozone depleting potential and

very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Power Requirement: 220-240V, 50-60 Hz 1.3.3. No risk of freezing 1.3.4. Holdover time: 3+days 1.3.5. Temperature control: • Refrigerator Compartment: - entire chamber remains within acceptable temperature range +2oC to +8C • Thermostat: The patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer , mounted on door 1.4.3. Stabilizer: Operating range: 110-260V 1.4.4. Power lead: lead of length 1.5 – 2 m is provided


GVR 50DC – Solar Direct Drive Ice lined Refrigerator



Key features of Godrej refrigerator: ✓ Hold over time of 5 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 5 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no

Product specification 1.1. General Solar Direct Drive Ice-lined refrigerator (DC current): compression-cycle 1.2. Physical characteristics 1.2.1. Overall dimensions: 122cm H x 75cm L x 79.5cm W 1.2.2. Weight: 95 kg (Approx.) 1.2.3. Gross volume: 57.7 L 1.2.4. Vaccine storage capacity volume: 46.5 L Key features of Godrej refrigerator: ✓ Hold over time of 5 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 5 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

1.2.5. Refrigerant : R600A – CFC free gas: negligible ozone depleting potential and very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Power Requirement: 24 VDC, 500W Solar Power 1.3.3. Areas not suitable for vaccine storage: None. No risk of freezing 1.3.4. Holdover time: 5+days 1.3.5. Temperature control: • Refrigerator Compartment:- entire vaccine load remains within acceptable temperature range +2oC to +8C • Thermostat: the patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the vaccine storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer , mounted on door 1.4.3. Surge Protector to bypass electricity surges.

1.4.4. Plug & Play Solar Connectors with Wind Resistant Solar Mounting Kit which can

withstand 200KN Wind Force.

1.4.5. Base stand: A Galvanised mild steel stand is also provided, can withstand 400 kg

load

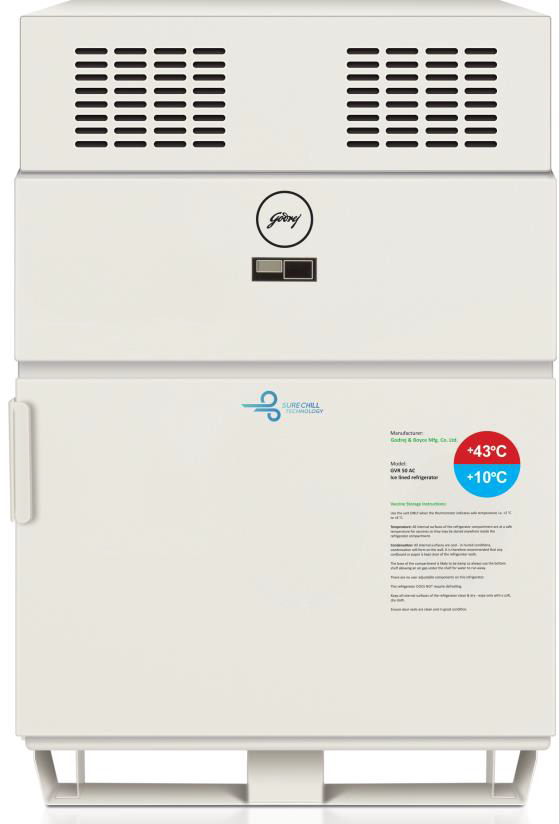

GVR 50AC – Ice lined Refrigerator


Key features of Godrej refrigerator: ✓ Hold over time of 7 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no

Product specification 1.1. General Ice-lined refrigerator powered by mains electricity (alternating current): compression-cycle 1.2. Physical characteristics 1.2.1. Overall dimensions: 122cm H x 75cm L x 79.5cm W 1.2.2. Weight: 95 kg (Approx.) 1.2.3. Gross volume: 57.7 L 1.2.4. Vaccine storage capacity volume: 46.5 L Key features of Godrej refrigerator: ✓ Hold over time of 7 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut. ✓ There is no risk of freezing of vaccines – SureChill technology ✓ Can operate in rough ambient temperature: +5 oC to +43 oC ✓ Green : Environmental friendly refrigerator ✓ Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

1.2.5. Refrigerant : R600A – CFC free gas: negligible ozone depleting potential and very low global warming potential 1.3. Performance 1.3.1. Operating temperature range: +5oC to +43oC 1.3.2. Voltage and frequency: 220-240 Volt 50/60 Hz 1.3.3. Areas not suitable for vaccine storage: None. No risk of freezing 1.3.4. Holdover time: 7days 1.3.5. Temperature control: • Refrigerator Compartment:- entire vaccine load remains within acceptable temperature range +2oC to +8C • Thermostat: the patented self-regulating SureChill technology ensures that fridge operating temperatures will always tend to 4oC. The thermostat is set to prevent freezing in any part of the vaccine storage compartment and is effective throughout the ambient temperature range +5oC to +43oC. 1.3.6. Corrosion resistance: Outer cabinet is made of Galvanised mild steel 1.4. Parts and accessories: 1.4.1. Lock: refrigerator door is fitted with two latch locks compatible for use in conjunction with a padlock 1.4.2. Display Thermometer: externally readable digital display thermometer , mounted on door 1.4.3. Stabilizer: Operating range: 110-260V 1.4.4. Power lead: lead of length 1.5 – 2 m is provided


Request Quote | Best Offer
